For those of you that do not know I am the Cubmaster for a local Cubscout Pack. What fun this job has been. But after running my first big event a few years back, the Pinewood Derby, I could not talk the next three days. I decided I needed voice amplification.
The next two events that I had I suckered a friend who use to own a karaoke business into coming to set up so I could have a microphone... HOW SWEET IT WAS!!!
Since then I have started collecting used and donated equipment so I did not have to bug my friend, good thing since he is now retired.
I ended up with a Radio Shack mixer, a set of Gem Sound wireless microphones, some el' cheapo wireless mics, and an aiwa stereo to use as a power amp. Along with this I scored a nice 10" PA speaker. I hit up Guitar Center and got all the cabling to make it work. The stereo is not a nice professional power amp but for my purposes works more then fine. Now I had a big pile of stuff to drag to a meeting and setup just so I could be heard. Then I started to drag it all to my wife's bigger Girl Scout events. Then to Christmas parties for some clubs I belong to. I always seem to be missing a piece when I get to where I am going and I am always scared I was going to break something in transport. But I had a big pile of cool stuff to play with that would take me an hour to setup once I got to where I was going.

So I decided it was time to build a custom box to hold it all. I got myself a sheet of plywood and started cutting. My plan was to build something so I could just plug into the wall and the PA speaker and turn on the power. I started by measuring all of my components and planning out how I wanted them arranged. Then my 8 year old Zach and I started cutting up the wood assembling and painting. I did not think to start taking photos until we were done painting.
Once the paint was dry it was into the house for the final assembly.
First step was to put in the power strip.
I then added the Gem Sound Microphone receiver. This component was what the width of the box was based on. I velcroed it in place.
On top of the microphone receiver I velcroed the mixer board and started running my cables.
Once the cables were ran I installed the stereo to push the sound to the speaker. It can also be used to play music :) I have cables ran from the mixer in various connectors to accommodate anything I want to hook into the system later ran into the compartment on the right. I used cable clamps to secure the cables to the box to make it nice and neat. You can see in the above photo I also installed the receivers for the el' cheapo mics.
Now it was time to install the top and the doors.

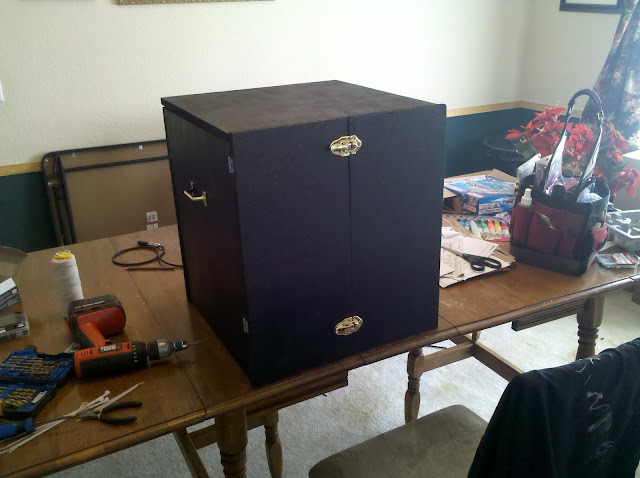

Then handles to be able to lift the setup and latches to keep the door close.
The tests of the system shows it is easy to setup and use. I am no longer worried that things are going to get broken and I know I will not loose my voice at the Pinewood derby on the 14th of this month. Next step is to put some casters on as this thing is HEAVY!!!!!!
